QJE 13.8V 30A DC Switching Power Supply PS30SWVIII 8Th Generation Regulated Power Supply for Radios

Features:
- QJE DC regulated power supply
- Anderson output; input voltage 110/220V
- Specially built for communication equipment; accurate and fast pointer display

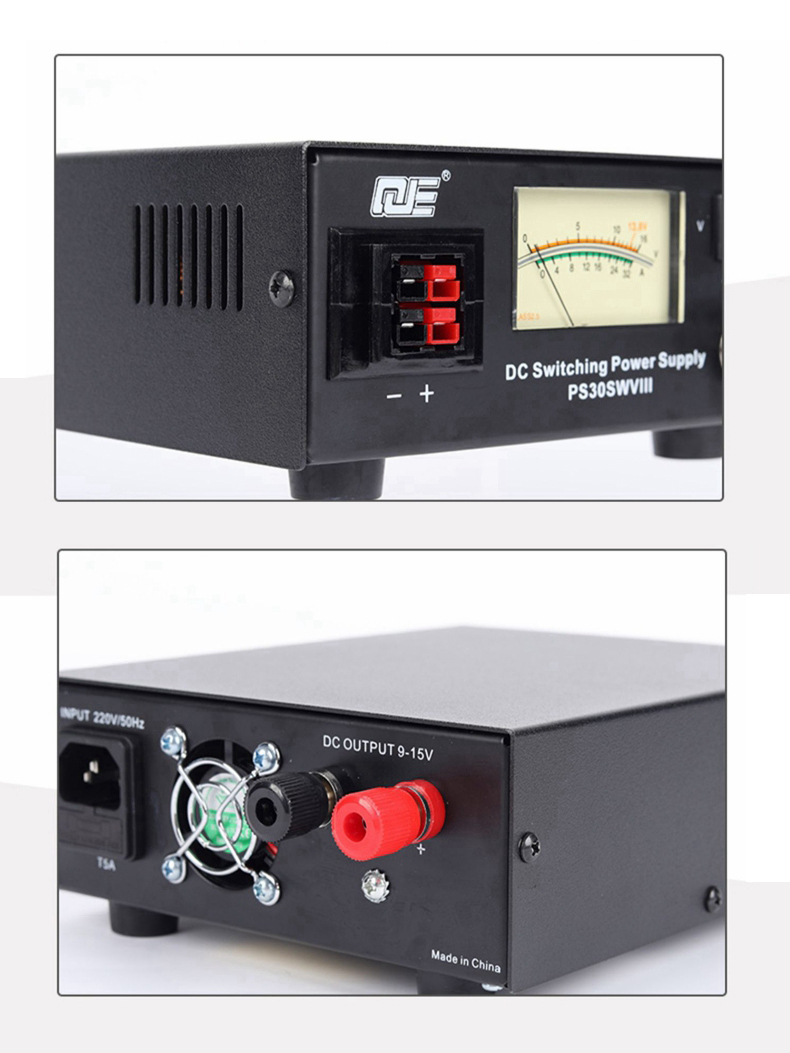

- Front two sets of Anderson outputs: dual voltage output; rear dual-purpose terminal socket supports 30A current output (max); widely used. Anderson interface supports hot swap, regardless of male or female, featuring large current

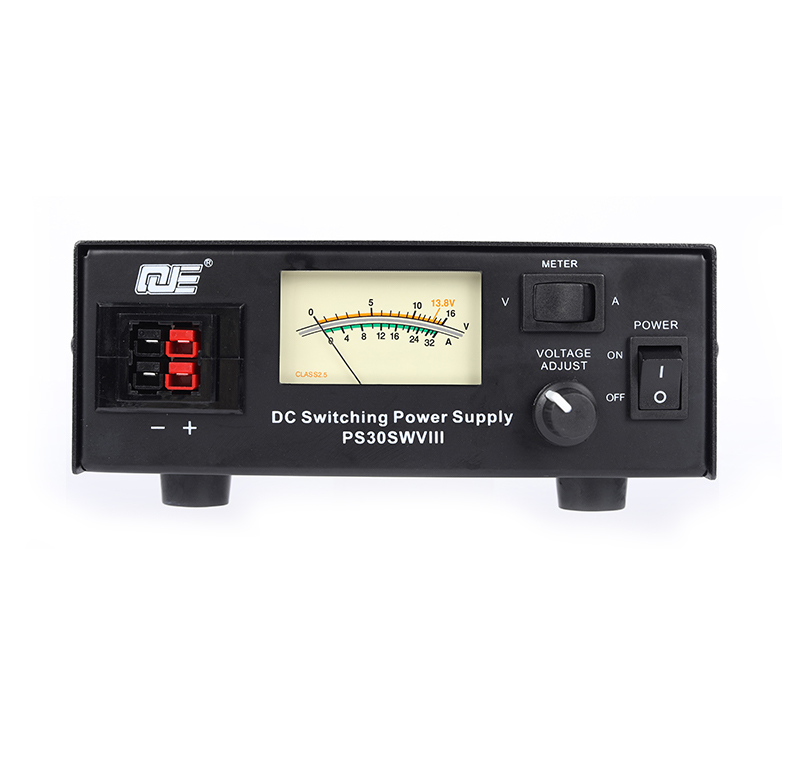

- Precise pointer display: one key to switch voltage and adjust current; 9-15V adjustable output voltage

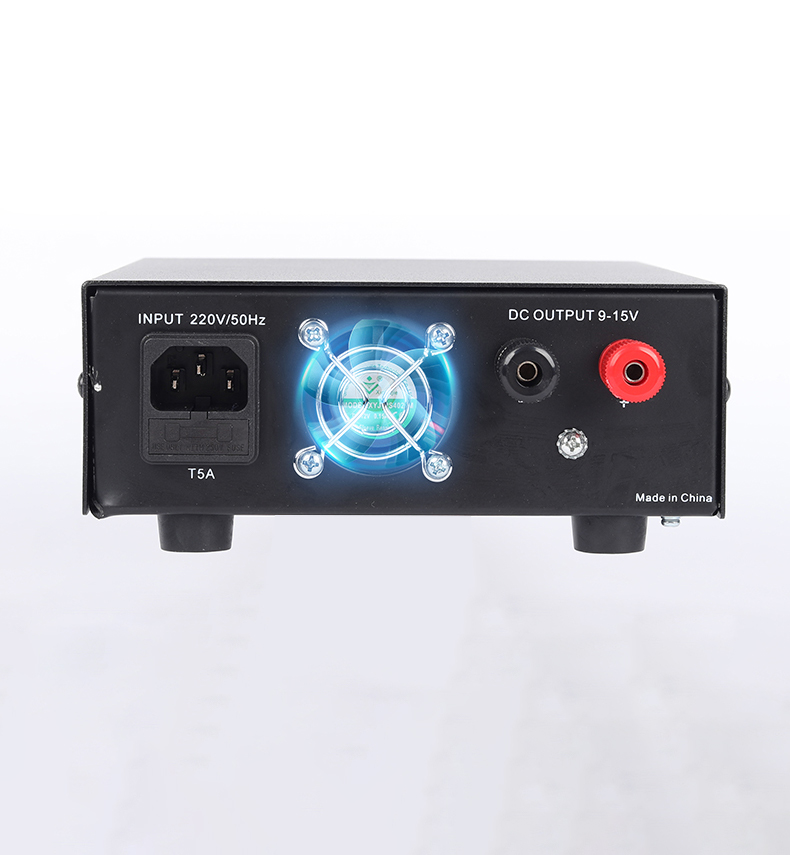

- Temperature-controlled fan: It provides a safe and stable working state for the internal components of the power supply, and is suitable for high-power radios. Can work continuously for a long time

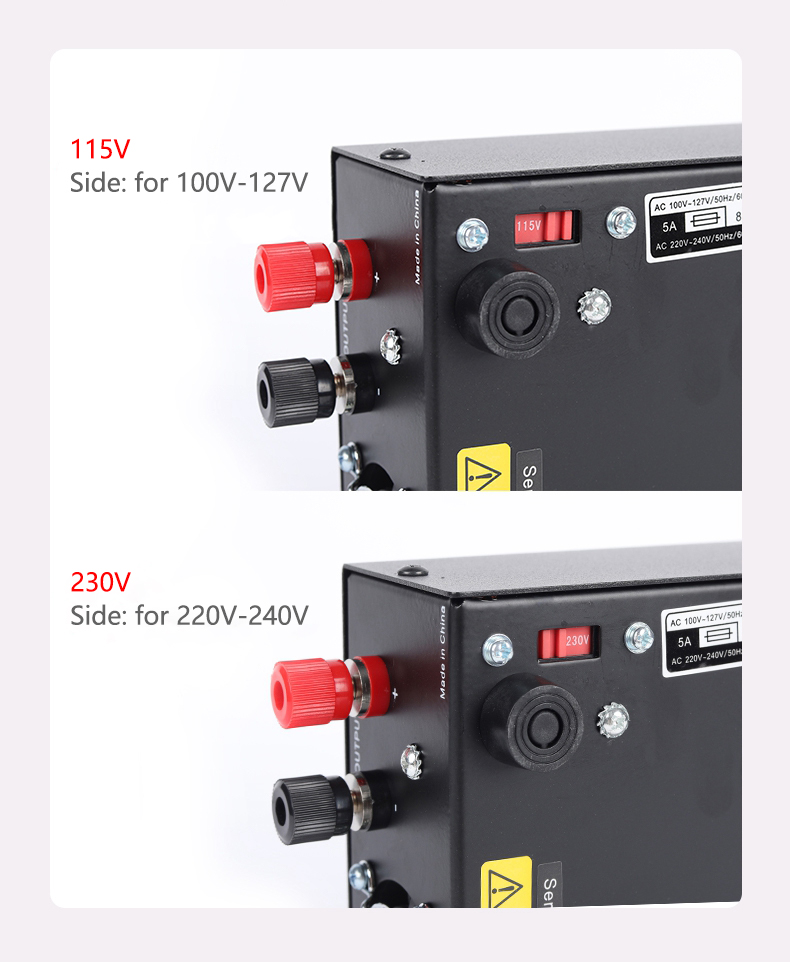

- Changeable voltage. 115V side for 100V-127V and 230V side for 220V-240V

Technical Parameters:
- Input voltage: 110/220V 50Hz (chose by bottom switch)
- Output voltage: fixed 13.8V±0.5V; 9~15V adjustable
- Output voltage accuracy: less than 2%
- Output current: 28A (continuous); 30A (peak)
- Ripple and noise: ≤100mVp-p
- Fuse: 5A
- Material: Aluminum shell
- Protection features: short-circuit, over-voltage, and overload and over-temperature protection

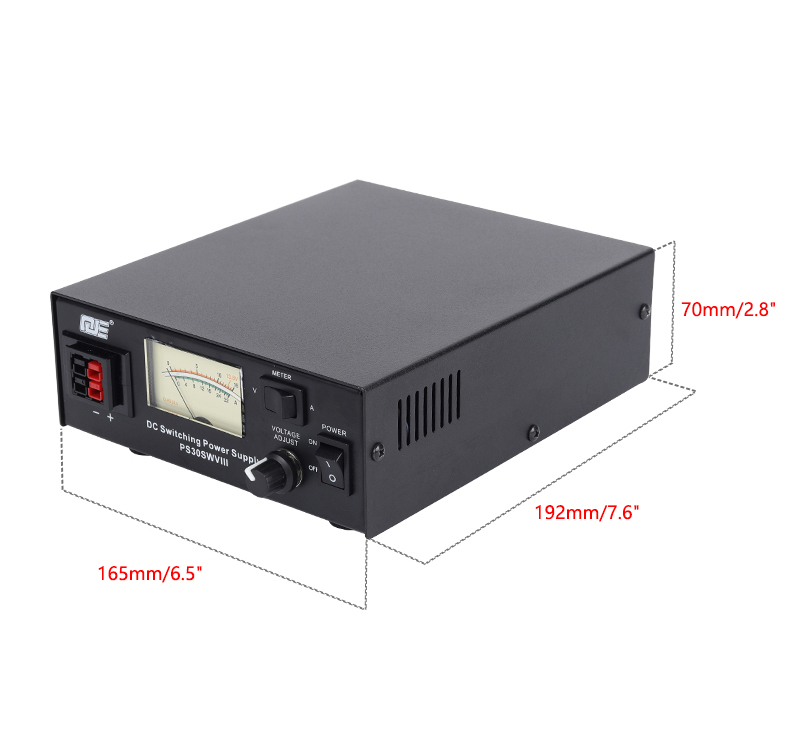

- Dimensions: 165 x 70 x 192mm/6.5 x 2.8 x 7.6"
- Net weight: 1.44kg/3.2 lb

Package Included:
- 1 x Switching Power Supply
- 1 x Instruction Manual
- 1 x Power Cord
