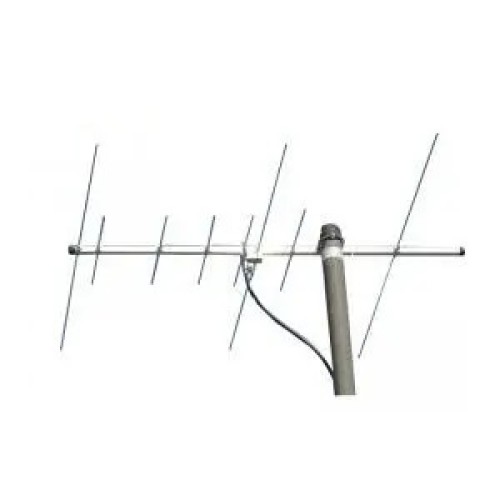

High Performance Yagi Antenna 144/430MHz 9.5/11.5dBi
| Electrical specifications | |
| Frequency Range(MHz) | 144/430MHz |
| Impedance(ohm) | 50 |
| Gain (dBi) | 9.5/11.5 |
| Polarization | Vertical |
| Radiation | Omni |
| VSWR | ≤1.5 |
| Horizontal 3dB Beam Width | 40 |
| Vertical 3dB Beam Width(°) | 36 |
| Lighting Protection | Direct Ground |
| Maximum input power (W) | 100 |
| Mechanical specifications | |
| Element | 8 |
| Length | 800mm |
| Connector | N-Female |
| Antenna weight (kg)(with installation kit) | 1.0Kg |
| Reflector material | Aluminium Alloy Weld |
| Mounting hardware | Ø40～Ø60 mm |
| Color | Black |
| Wind Velocity | 160 m/h |
SD YAGI ANTENNA SDY OUTDOOR 144-146/430-440MHZ VHF/UHF DUAL BAND DIRECTIONAL YAGI ANTENNA
- Product Code: YAGI ANTENNA DUALBAND 144/430MHz (SD)
- Availability: 1
-
RM280.00
- Ex Tax: RM280.00
